Ventilfjäder Hug 1106

Ventilfjäder Hug 1106

120 kr
120 kr
Rea Slutsåld
Skatt ingår. Frakt beräknas i kassan.

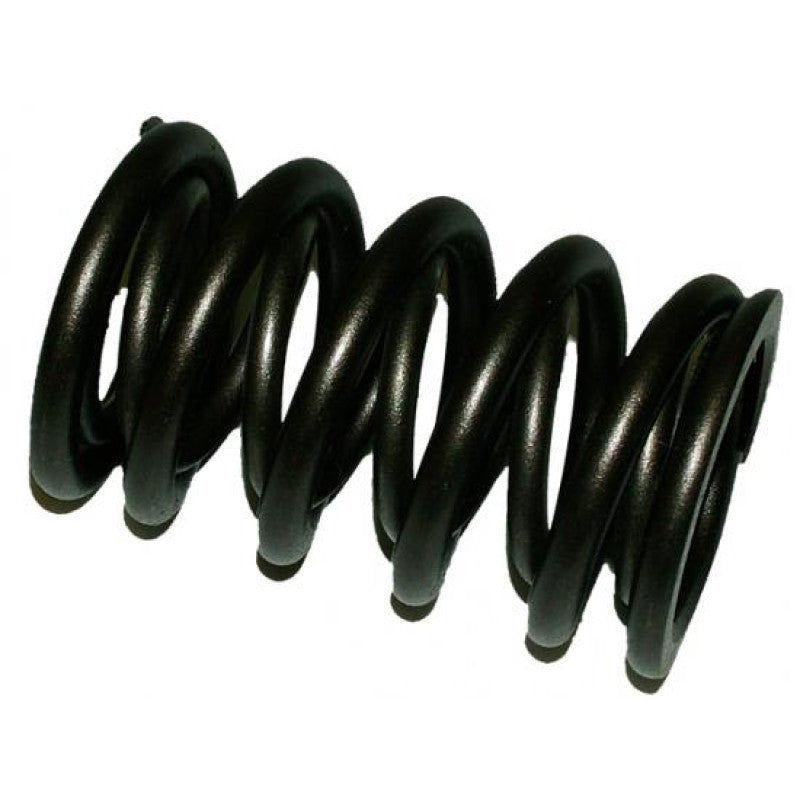

SINGLE VALVE SPRING W/ DAMPER

150# @ 1.880" INSTALLED 335# @ .550" LIFT

Priset är per styck

Installed height/pressure 1,880"-150#
Pressure 450 lift 315#
Pressure 500 lift 325#
Pressure 550 lift 335#
Pressure 600 lift 350#
Pressure 650 lift 365#
Coil bind 680 lift
Inner spring ID/OD 0,800"/1,130"
Outer spring ID/OD 1,130"/1,540"
Type of spring Single w/ damper


















To use valve springs #1107, #1109, #1117, and #1119 on OEM iron heads, the cylinder head must be machined at the spring base and the guide must be cut for positive type seals. When open pressure on double valve springs exceeds 300lbs, new flat tappet camshafts should be "broken-in" by running the engine at 1800rpm for 30 minutes and using the outer spring only. Roller camshafts do not require break-in.
